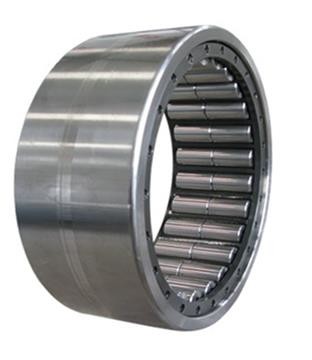

Rouleau cylindrique à double rangée, NN 3940, OD : 280 mm, ID : 200 mm, B : 60 mm, 10,6 kg
Description du produit:
Les roulements à rouleaux cylindriques à deux rangées ont deux types de structures : trous cylindriques et coniques (code K).
Il existe deux types principaux : la conception NNU et la conception NN.
La conception de type NN comporte des nervures doubles sur la bague intérieure et aucune nervure sur la bague extérieure.La conception en forme de NNU n'a pas de bords de blocage sur la bague intérieure et des bords de blocage doubles sur la bague extérieure.La structure du trou conique peut ajuster le jeu radial lors de l'installation.Les roulements à rouleaux cylindriques à double rangée permettent un certain déplacement axial entre l'arbre et le siège du roulement et peuvent être utilisés comme roulements sans positionnement.
Ce type de roulement présente les avantages d'une structure compacte, d'une rigidité élevée, d'une capacité de charge élevée et d'une faible déformation après charge, ce qui le rend adapté au support des broches de machines-outils.
Paramètre :
| taille du roulement | CHARGE NOMINALE | Modèle | taille de la structure | Cotes d'installation | poids | |||||||||||
| mm | kN | modèle actuel | Ancien modèle | mm | mm | kg | ||||||||||
| d | D | B | rmin | Cr | Cor | Fw | Beurk | putain | damax | Damin | Damax | dbmin | ramax | |||
| 200 | 280 | 60 | 2.1 | 420 | 815 | NN 3940 | 3282940 | - | 259 | 216 | 221 | 263 | - | - | 2 | 10.6 |
| 280 | 80 | 2.1 | 484 | 960 | NN4940K/W20 | 4182940Y | - | 259 | 211 | 222 | 264 | 269 | - | 2 | 14.1 | |
| 280 | 80 | 2.1 | 570 | 1220 | NN 4940 | 4282940 | - | 259 | 211 | 222 | 264 | 269 | - | 2 | 15.3 | |
| 280 | 80 | 2.1 | 570 | 1220 | NNU 4940 | 4482940 | 225 | - | 211 | 222 | - | 269 | 228 | 2 | 15.3 | |
| 310 | 82 | 2.1 | 655 | 1170 | NN 3040 | 3282140 | - | 282 | 211 | - | 285 | 299 | - | 2 | 22,7 | |
| 310 | 82 | 2.1 | 655 | 1170 | NNU 3040 | 3482140 | 232 | - | 211 | 223 | - | 293 | 237 | 2 | 22,7 | |
| 310 | 109 | 2.1 | 890 | 1730 | NN 4040 | 4282140 | - | 282 | 216 | 225 | 293 | - | - | 2 | 30.4 | |
| 220 | 300 | 60 | 2.1 | 440 | 895 | NN 3944 | 3282944 | - | 279 | 236 | 241 | - | 283 | - | 2 | 11.4 |
| 300 | 80 | 2.1 | 600 | 1330 | NN 4944 | 4282944 | - | 279 | 236 | 242 | - | 283 | - | 2 | 16.6 | |
| 300 | 80 | 2.1 | 600 | 1330 | NNU 4944 | 4482944 | 245 | - | 231 | 242 | - | 289 | 249 | 2 | 16.6 | |
| 340 | 90 | 3 | 815 | 1480 | NN 3044 | 3282144 | - | 310 | 233 | - | 313 | 327 | - | 2.5 | 29.6 | |
| 340 | 90 | 3 | 815 | 1480 | NNU 3044 | 3482144 | 254 | - | 230 | - | 313 | 327 | - | 2.5 | 30 | |
| 340 | 118 | 3 | 1190 | 2400 | NN 4044 | 4282144 | - | 310 | 233 | - | 313 | 327 | - | 2.5 | 39,8 | |
| 370 | 120 | 4 | 1050 | 1810 | NN 3144 | 3282744 | - | 331 | 241 | - | - | 346 | - | 3 | 51,9 | |
| 370 | 120 | 4 | 1050 | 1810 | NNU 3144 | 3482744 | 263 | - | 241 | - | - | 346 | 268 | 3 | 52.3 | |
| 240 | 300 | 60 | 1.1 | 405 | 1030 | NN 4848 | 4282848 | - | 283 | 248 | 255 | 287 | 290 | - | 1 | 9.77 |
| 300 | 60 | 1.1 | 358 | 930 | NNU4848 | - | 259 | - | 248 | 255 | - | 290 | 263 | 1 | 9.9 | |
| 320 | 60 | 2.1 | 460 | 975 | NN 3948 | 3282948 | - | 300 | 251 | 262 | - | 309 | - | 2 | 12.2 | |
| 320 | 80 | 2.1 | 625 | 1450 | NN 4948 | 4282948 | - | 300 | 251 | 262 | - | 309 | - | 2 | 17.9 | |
| 320 | 80 | 2.1 | 625 | 1450 | NNU 4948 | 4482948 | 263 | - | 251 | 262 | - | 309 | 269 | 2 | 18 | |
| 360 | 92 | 3 | 855 | 1600 | NN 3048 | 3282148 | - | 330 | 253 | - | 333 | 347 | - | 2.5 | 32,7 | |
| 360 | 92 | 3 | 855 | 1600 | NNU 3048 | 3482148 | 274 | - | 253 | 266 | - | 347 | 280 | 2.5 | 32,7 | |
| 360 | 118 | 3 | 1240 | 2600 | NN 4048 | 4282148 | - | 330 | 253 | 266 | 333 | 347 | - | 2.5 | 39.3 | |
| 360 | 118 | 3 | 1240 | 2600 | NNU 4048 | 4482148 | 274 | - | 253 | 266 | - | 347 | 281 | 2.5 | 42,7 | |
| 400 | 128 | 4 | 1170 | 2040 | NN 3148 | 3282748 | - | 358 | 256 | - | 362 | 384 | - | 3 | 64.2 | |
| 400 | 160 | 4 | 1880 | 3530 | NNU 4148 | 4482748 | 282 | - | 256 | 282 | - | 384 | 291 | 3 | 85 | |
| 260 | 360 | 75 | 2.1 | 670 | 1380 | NN 3952 | 3282952 | - | 335 | 271 | 288 | - | 349 | - | 2 | 21.4 |
| 360 | 100 | 2.1 | 711 | 1540 | NN4952K | 4182952 | - | 335 | 271 | 288 | - | 349 | - | 2 | 29.2 | |
| 360 | 100 | 2.1 | 935 | 2100 | NN 4952 | 4282952 | - | 335 | 271 | 288 | - | 349 | - | 2 | 28.3 | |
| 360 | 100 | 2.1 | 935 | 2100 | NNU 4952 | 4482952 | 292 | - | 271 | 288 | - | 349 | 296 | 2 | 31.1 | |
| 260 | 400 | 104 | 4 | 969 | 1810 | NN 3052K | 3182152 | - | 364 | 276 | - | 367 | 384 | - | 3 | 47.1 |
| 400 | 104 | 4 | 969 | 1810 | NN 3052 | 3282152 | - | 364 | 276 | - | 367 | 384 | - | 3 | 48,5 | |
| 400 | 140 | 4 | 1550 | 3250 | NN 4052 | 4282152 | - | 364 | 276 | - | 369 | 384 | - | 3 | 59,7 | |
| 400 | 140 | 4 | 1550 | 3250 | NNU 4052 | 4482152 | 300 | - | 276 | 289 | - | 384 | 299 | 3 | 65 | |
| 440 | 144 | 4 | 1480 | 2660 | NN 3152 | 3282752 | - | 393 | 276 | - | 415 | 424 | - | 3 | 89,1 | |
| 440 | 180 | 4 | 2200 | 4000 | NNU4152 | 4482752 | 306 | - | 276 | 300 | - | 424 | 310 | 3 | 113 | |
| 280 | 350 | 69 | 1.1 | 445 | 1160 | NN 4856 | 4282856 | - | 329 | 287,5 | - | - | 340 | - | 1 | 15.3 |
| 350 | 69 | 2 | 457 | 1200 | NNU4856K | - | 303 | - | 287,5 | 298 | - | 340 | 307 | 1 | 15,5 | |
| 380 | 75 | 2.1 | 695 | 1460 | NN 3956 | 3282956 | - | 355 | 291 | - | - | 369 | - | 2 | 22,7 | |
| 380 | 100 | 2.1 | 960 | 2230 | NN 4956 | 4284956 | - | 355 | 291 | - | - | 369 | - | 2 | 32,9 | |
| 380 | 100 | 2.1 | 960 | 2230 | NNU 4956 | 4482956 | 312 | - | 291 | 308 | - | 369 | 316 | 2 | 33 | |
| 420 | 106 | 4 | 1020 | 1950 | NN 3056K | 3182156 | - | 384 | 296 | - | 387 | 404 | - | 3 | 49.1 | |
| 420 | 106 | 4 | 1020 | 1950 | NN 3056 | 3282156 | - | 384 | 296 | - | 387 | 404 | - | 3 | 49,9 | |
| 420 | 106 | 4 | 1080 | 2080 | NNU3056 | - | 320 | - | 300 | - | - | 440 | 326 | 3 | 51.4 | |
| 460 | 146 | 5 | 1520 | 2790 | NN 3156 | 3282756 | - | 413 | 300 | - | 416 | 440 | - | 4 | 95,7 | |
| 300 | 380 | 80 | 2.1 | 690 | 1760 | NNU 4860 | 4482860 | 324 | - | 308 | 320 | - | 369 | 330 | 2 | 21.7 |
| 420 | 118 | 3 | 1230 | 2870 | NN 4960 | 4282960 | - | 388 | 314 | 335 | - | 398 | - | 2.5 | 51,6 | |
| 420 | 118 | 3 | 1230 | 2870 | NNU 4960 | 4482960 | 339 | - | 314 | 335 | - | 406 | 343 | 2.5 | 51,9 | |
| 460 | 118 | 4 | 1180 | 2250 | NN 3060 | 3282160 | - | 418 | 316 | - | 421 | 444 | - | 3 | 71,7 | |
| 460 | 118 | 4 | 1180 | 2250 | NN 3060K | 3182160 | - | 418 | 316 | - | 421 | 444 | - | 3 | 69,6 | |
| 460 | 160 | 4 | 1920 | 4100 | NN4060 | - | - | 418 | 316 | - | - | 440 | - | 3 | 97,6 | |
| 500 | 160 | 5 | 1760 | 3150 | NN 3160 | 3282760 | - | 448 | 320 | - | 450 | 480 | - | 4 | 125 | |
| 500 | 160 | 5 | 1760 | 3150 | NNU 3160 | 3482760 | 358 | - | 320 | - | - | 480 | 365 | 4 | 126 | |
| 320 | 400 | 80 | 2.1 | 700 | 1840 | NNU 4864 | 4482864 | 346 | - | 328 | 340 | - | 389 | 350 | 2 | 22,8 |
| 440 | 118 | 3 | 1260 | 3050 | NN 4964 | 4282964 | - | 408 | 334 | 355 | - | 427 | - | 2.5 | 50,2 | |
| 440 | 118 | 3 | 1260 | 3050 | NN4964K | 4182964 | - | 408 | 334 | 355 | - | 427 | - | 2.5 | 52 | |
| 440 | 118 | 3 | 1260 | 3050 | NNU 4964 | 4482964 | 359 | - | 334 | 355 | - | 426 | 363 | 2.5 | 54,9 | |
| 480 | 121 | 4 | 1350 | 2670 | NN 3064 | 3282164 | - | 438 | 336 | - | 442 | 464 | - | 3 | 76,6 | |
| 480 | 121 | 4 | 1350 | 2670 | NNU 3064 | 3482164 | 366 | - | 336 | 353 | 442 | 464 | - | 3 | 76,9 | |
| 480 | 160 | 4 | 1960 | 4300 | NNU 4064 | 4482164 | 367 | - | 336 | 353 | - | 464 | 364 | 3 | 103 | |
| 320 | 540 | 176 | 5 | 2090 | 3750 | NNU 3164 | 3482764 | 384 | - | 340 | 379 | - | 520 | 389 | 4 | 154 |
| 340 | 460 | 90 | 3 | 905 | 2020 | NN 3968 | 3282968 | - | 428 | 353 | 375 | - | 447 | - | 2.5 | 42,9 |
| 460 | 118 | 3 | 1040 | 2450 | NN4968K | 4182968 | - | 428 | 353 | 375 | - | 447 | - | 2.5 | 53,8 | |
| 460 | 118 | 3 | 1350 | 3400 | NN 4968 | 4282968 | - | 428 | 353 | 375 | - | 447 | - | 2.5 | 52.1 | |
| 460 | 118 | 3 | 1350 | 3400 | NNU 4968 | 4482968 | 379 | - | 354 | 375 | - | 446 | 383 | 2.5 | 57,8 | |
| 520 | 133 | 5 | 1560 | 3020 | NN 3068K | 3182168 | - | 473 | 360 | - | 477 | 500 | - | 4 | 101 | |
| 520 | 133 | 5 | 1560 | 3020 | NN 3068 | 3282168 | - | 473 | 360 | - | 477 | 500 | - | 4 | 104 | |
| 520 | 133 | 5 | 1560 | 3020 | NNU3068 | 3482168 | 387 | - | 360 | - | - | 500 | 400 | 4 | 104 | |
| 520 | 180 | 5 | 2420 | 5350 | NNU 4068 | 4482168 | 385 | - | 360 | 377 | - | 500 | 389 | 4 | 141 | |
| 360 | 480 | 90 | 3 | 930 | 2130 | NN 3972 | 3282972 | - | 448 | 373 | - | 453 | 467 | - | 2.5 | 44,9 |
| 480 | 118 | 3 | 1390 | 3550 | NNU 4972 | 4482972 | 399 | - | 374 | 395 | - | 466 | 403 | 2.5 | 60,6 | |
| 540 | 134 | 5 | 1630 | 3240 | NN 3072 | 3282172 | - | 493 | 380 | - | 497 | 520 | - | 4 | 106 | |
| 540 | 134 | 5 | 1630 | 3240 | NN 3072K | 3182172 | - | 493 | 380 | - | 497 | 520 | - | 4 | 106 | |
| 540 | 134 | 5 | 1630 | 3240 | NNU 3072 | 3482172 | 413 | - | 380 | - | - | 520 | 420 | 4 | 108 | |
| 540 | 180 | 5 | 2530 | 5450 | NN 4072 | 3282172 | - | 496 | 380 | 397 | - | 520 | - | 4 | 132 | |
| 420 | 620 | 150 | 5 | 2130 | 4450 | NN 3084 | 3282184 | - | 568 | 440 | - | 574 | 600 | - | 4 | 154 |
| 620 | 150 | 5 | 2130 | 4450 | NNU 3084 | 3482184 | 478 | - | 440 | - | - | 600 | 474 | 4 | 155 | |
| 620 | 200 | 5 | 3150 | 7100 | NN 4084 | 4282184 | - | 571 | 440 | - | 574 | 600 | - | 4 | 189 | |
| 620 | 200 | 5 | 3400 | 7850 | NNU 4084 | 4482184 | 469 | - | 440 | 460 | - | 600 | 474 | 4 | 209 | |
| 700 | 224 | 6 | 3550 | 6800 | NNU 3184 | 3482784 | 501 | - | 444 | - | - | 660 | 508 | 5 | 347 | |
| 440 | 540 | 100 | 2.1 | 950 | 2790 | NNU 4888 | 4482888 | 470 | - | 448 | 464 | - | 529 | 476 | 2 | 49,5 |
| 650 | 157 | 6 | 2360 | 4900 | NN 3088 | 3282188 | - | 596 | 466 | - | 600 | 624 | - | 5 | 177 | |
| 650 | 157 | 6 | 2360 | 4900 | NNU 3088 | 3482188 | 500 | - | 466 | - | - | 624 | 507 | 5 | 178 | |
| 720 | 226 | 6 | 3500 | 6800 | NN 3188 | 3282788 | - | 649 | 466 | - | - | 680 | - | 5 | 357 | |
| 460 | 580 | 118 | 3 | 1200 | 3600 | NNU4892 | 4482892 | 497 | - | 474 | 489 | - | 566 | 502 | 2.5 | 76 |
| 620 | 118 | 4 | 1610 | 3700 | NN 3992 | 3282992 | - | 578 | 476 | 504 | - | 604 | - | 3 | 94,5 | |
| 620 | 160 | 4 | 2400 | 6200 | NNU 4992 | 4482992 | 510 | - | 476 | 504 | - | 604 | 515 | 3 | 140 | |
| 680 | 163 | 6 | 2470 | 5070 | NN 3092K | 3182192 | - | 624 | 484 | - | 627 | 654 | - | 5 | 204 | |
| 680 | 163 | 6 | 2470 | 5070 | NN 3092 | 3282192 | - | 624 | 484 | - | 627 | 654 | - | 5 | 204 | |
| 480 | 650 | 170 | 5 | 2690 | 7000 | NN 4996 | 4282996 | - | 607 | 500 | - | - | 630 | - | 4 | 164 |
| 480 | 700 | 165 | 6 | 2600 | 5550 | NN 3096 | 3282196 | - | 643 | 506 | - | 648 | 674 | - | 5 | 211 |
| 700 | 218 | 6 | 4300 | 8600 | NNU4096 | 4482196 | 533 | - | 506 | 523 | - | 674 | 538 | 5 | 273 | |
| 790 | 248 | 7.5 | 4050 | 8100 | NN 3196 | 3282796 | - | 708 | 512 | - | 718 | 758 | - | 6 | 447 | |
| 500 | 670 | 170 | 5 | 2720 | 7200 | NNU 49/500 | 44829/500 | 554 | - | 520 | 548 | - | 650 | 559 | 4 | 171 |
| 720 | 167 | 6 | 2580 | 5600 | NN 30/500 | 32821/500 | - | 664 | 526 | - | 668 | 694 | - | 5 | 205 | |
| 720 | 167 | 6 | 2580 | 5600 | NNU 30/500 | 34821/500 | 563 | - | 526 | - | - | 694 | 570 | 5 | 220 | |
| 530 | 710 | 136 | 5 | 2040 | 4900 | NN 39/530 | 32829/530 | - | 663 | 550 | 582 | - | 690 | - | 4 | 149 |
| 710 | 180 | 5 | 2900 | 7050 | NNU 49/530 | 44829/530 | 588 | - | 550 | 582 | - | 690 | 593 | 4 | 202 | |
| 780 | 185 | 6 | 3200 | 6900 | NN 30/530 | 32821/530 | - | 715 | 556 | - | 720 | 754 | - | 5 | 296 | |
| 560 | 750 | 140 | 5 | 2370 | 4860 | NN 39/560 | 32829/530 | - | 705 | 576 | - | 711 | 735 | - | 4 | 188 |
| 750 | 190 | 5 | 3250 | 8700 | NNU 49/560 | 44829/560 | 623 | - | 580 | 619 | - | 730 | 628 | 4 | 239 | |
| 780 | 180 | 8 | 2400 | 6400 | NN 6/560 | 2872/560 | - | 725 | 580 | - | 732 | 765 | - | 5 | 266 | |
| 820 | 195 | 8 | 2460 | 6560 | NN 30/560K | 31821/560 | - | 756 | 586 | - | 761 | 794 | - | 5 | 341 | |
| 820 | 258 | 6 | 4100 | 10600 | NN 40/560 | 42821/560 | - | 745 | 586 | - | - | 794 | - | 5 | 472 | |
| 820 | 258 | 6 | 5720 | 13100 | NNU 40/560 | 44821/560 | 626 | - | 586 | 615 | - | 794 | 632 | 5 | 420 | |
| 560 | 920 | 280 | 7.5 | 6850 | 13700 | NNU 31/560 | 34827/560 | 650 | - | 630 | - | - | - | 655 | 6 | 738 |
| 600 | 800 | 200 | 5 | 3850 | 10500 | NNU 49/600 | 44829/600 | 666 | - | 620 | 662 | - | 780 | 672 | 4 | 284 |
| 800 | 200 | 5 | 3450 | 7180 | NN49/600K | 41829/600 | - | 755 | 620 | - | - | 780 | - | 4 | 257 | |
| 870 | 200 | 6 | 3420 | 7785 | NN 30/600 | 32821/600 | - | 803 | 626 | - | 808 | 844 | - | 5 | 355 | |
| 870 | 272 | 6 | 6138 | 14040 | NNU 40/600 | 44821/600 | 664 | - | 626 | 653 | - | 844 | 670 | 5 | 530 | |
| 980 | 375 | 7.5 | 8910 | 18990 | NNU 41/600 | 44827/600 | 699 | - | 633 | 682 | - | 947 | 706 | 6 | 1100 | |
| 630 | 780 | 150 | 4 | 2290 | 7000 | NNU 48/630 | 44828/630 | 676 | - | 646 | 667 | - | 764 | 676 | 3 | 160 |
| 850 | 218 | 6 | 4200 | 11400 | NN 49/630 | 42829/630 | - | 793 | 656 | - | - | 824 | - | 5 | 328 | |
| 850 | 218 | 6 | 4000 | 10800 | NNU 49/630 | 44829/630 | 704 | - | 656 | 699 | - | 824 | 710 | 5 | 356 | |
| 920 | 212 | 7.5 | 3860 | 8820 | NN 30/630 | 32821/630 | - | 845 | 663 | - | 851 | 887 | - | 6 | 430 | |
| 920 | 290 | 7.5 | 6885 | 15750 | NNU 40/630 | 44821/630 | 699 | - | 663 | 688 | - | 887 | 705 | 6 | 635 | |
| 1030 | 400 | 7.5 | 9900 | 21600 | NNU 41/630 | 44827/630 | 734 | - | 663 | 716 | - | 997 | 740 | 6 | 1330 | |
| 670 | 900 | 230 | 6 | 4450 | 12330 | NN 49/670 | 42829/670 | - | 838 | 696 | - | - | 874 | - | 5 | 419 |
| 900 | 230 | 6 | 4950 | 13100 | NNU 49/670 | 44829/670 | 738 | - | 696 | 732 | - | 874 | 744 | 5 | 430 | |
| 980 | 230 | 7.5 | 4620 | 10260 | NN 30/670K | 31821/670 | - | 901 | 703 | - | 907 | 947 | - | 6 | 597 | |
| 670 | 980 | 308 | 7.5 | 7578 | 17640 | NNU 40/670 | 44821/670 | 744 | - | 703 | 733 | - | 947 | 750 | 6 | 765 |
| 1090 | 412 | 7.5 | 10890 | 22950 | NNU 41/670 | 44827/670 | 774 | - | 703 | 756 | - | 1057 | 780 | 6 | 1500 | |
| 710 | 870 | 160 | 4 | 2640 | 8350 | NNU 48/710 | 44828/710 | 759 | - | 726 | 750 | - | 854 | 759 | 3 | 203 |
| 950 | 243 | 6 | 4850 | 13770 | NNU49/710 | 44829/710 | 782 | - | 736 | 776 | - | 924 | 788 | 5 | 480 | |
| 1030 | 236 | 7.5 | 5148 | 11880 | NN 30/710 | 32821/710 | - | 951 | 743 | - | 957 | 997 | - | 6 | 590 | |
| 1030 | 315 | 7.5 | 8415 | 19440 | NNU 40/710 | 44821/710 | 784 | - | 743 | 772 | - | 997 | 790 | 6 | 850 | |
| 1150 | 438 | 9.5 | 12060 | 25650 | NNU 41/710 | 44827/710 | 820 | - | 750 | 800 | - | 1110 | 826 | 8 | 1790 | |
| 750 | 920 | 170 | 5 | 3070 | 9180 | NN 48/750 | 42828/750 | - | 879 | 770 | - | 887 | 904 | - | 4 | 240 |
| 1000 | 250 | 6 | 4950 | 14400 | NNU 49/750 | 44829/750 | 831 | - | 776 | 824 | - | 974 | 837 | 5 | 540 | |
| 1090 | 250 | 7.5 | 6336 | 14400 | NN 30/750 | 32821/750 | - | 1007 | 783 | - | 1011 | 1057 | - | 6 | 705 | |
| 1090 | 335 | 7.5 | 9180 | 21600 | NNU 40/750 | 44821/750 | 830 | - | 783 | 816 | - | 1057 | 836 | 6 | 925 | |
| 1220 | 475 | 9.5 | 14490 | 31950 | NNU 41/750 | 44827/750 | 871 | - | 790 | 850 | - | 1180 | 877 | 8 | 2230 | |
| 800 | 1060 | 258 | 6 | 5247 | 15300 | NNU 49/800 | 44829/800 | 884 | - | 826 | 876 | - | 1034 | 890 | 5 | 615 |
| 1150 | 258 | 7.5 | 7029 | 16200 | NN 30/800 | 32821/800 | - | 1065 | 833 | - | 1071 | 1117 | - | 6 | 790 | |
| 1150 | 345 | 7.5 | 9720 | 23400 | NNU 40/800 | 44821/800 | 885 | - | 833 | 871 | - | 1117 | 891 | 6 | 1140 | |
| 800 | 1280 | 475 | 9.5 | 14850 | 32850 | NNU 41/800 | 44827/800 | 921 | - | 840 | 900 | - | 1240 | 928 | 8 | 2390 |
| 850 | 1030 | 180 | 5 | 3400 | 11400 | NNU48/850 | 44828/850 | 905 | - | 888 | - | - | - | 912 | 4 | 310 |
| 1120 | 272 | 6 | 5346 | 16200 | NNU 49/850 | 44829/850 | 939 | - | 876 | 930 | - | 1094 | 946 | 5 | 715 | |
| 1220 | 272 | 7.5 | 7128 | 16740 | NN 30/850 | 32821/850 | - | 11h30 | 883 | - | 1136 | 1187 | - | 6 | 940 | |
| 1220 | 365 | 7.5 | 10530 | 25650 | NNU 40/850 | 44821/850 | 940 | - | 883 | 923 | - | 1187 | 947 | 6 | 1340 | |
| 1360 | 500 | 6 | 19080 | 40500 | NNU 41/850 | 44827/850 | 976 | - | 897 | 935 | - | 1334 | 963 | 5 | 2900 | |
| 900 | 1180 | 280 | 6 | 5940 | 18000 | NNU 49/900 | 44829/900 | 986 | - | 926 | 977 | - | 1154 | 993 | 5 | 805 |
| 1280 | 280 | 7.5 | 7425 | 18000 | NN 30/900 | 32821/900 | - | 1185 | 933 | - | 1191 | 1257 | - | 6 | 1050 | |
| 1280 | 375 | 7.5 | 11520 | 28350 | NNU 40/900 | 44821/900 | 990 | - | 933 | 963 | - | 1257 | 997 | 6 | 1500 | |
| 1420 | 515 | 6 | 19800 | 42750 | NNU 41/900 | 44827/900 | 1032 | - | 947 | 1008 | - | 1394 | 1039 | 5 | 3180 | |
| 950 | 1250 | 300 | 7.5 | 6633 | 20160 | NNU 49/950 | 44829/950 | 1046 | - | 983 | 1036 | - | 1217 | 1053 | 6 | 960 |
| 1360 | 300 | 7.5 | 8217 | 20160 | NN 30/950 | 32821/950 | - | 1255 | 983 | - | 1263 | 1327 | - | 6 | 1300 | |
| 1360 | 412 | 7.5 | 12780 | 31950 | NNU 40/950 | 44821/950 | 1050 | - | 983 | 1033 | - | 1327 | 1057 | 6 | 1900 | |
| 950 | 1500 | 545 | 6 | 22950 | 51300 | NNU 41/950 | 44827/950 | 1092 | - | 997 | 1068 | - | 1474 | 1099 | 5 | 3830 |
| 1000 | 1320 | 315 | 7.5 | 7722 | 23400 | NNU 49/1000 | 44829/1000 | 1103 | - | 1033 | 1096 | - | 1287 | 1110 | 6 | 1250 |
| 1000 | 1320 | 315 | 7.5 | 8580 | 25200 | NN49/1000 | 42829/1000 | - | 1238 | 1033 | - | 1249 | 1287 | - | 6 | 1200 |
| 1420 | 308 | 7.5 | 9090 | 22050 | NN 30/1000 | 32821/1000 | - | 1316 | 1033 | - | 1324 | 1387 | - | 6 | 1400 | |
| 1420 | 412 | 7.5 | 13860 | 34200 | NNU 40/1000 | 44821/1000 | 1101 | - | 1033 | 1084 | - | 1387 | 1108 | 6 | 2000 | |
| 1580 | 580 | 6 | 24750 | 55800 | NNU 41/1000 | 44827/1000 | 1154 | - | 1047 | 1128 | - | 1474 | 1161 | 5 | 4270 | |
| 1060 | 1400 | 335 | 7.5 | 9450 | 27450 | NNU 49/1060 | 44829/1060 | 1160 | - | 1093 | 1150 | - | 1367 | 1167 | 6 | 1350 |
| 1500 | 325 | 9.5 | 9900 | 24750 | NN 30/1060 | 32821/1060 | - | 1391 | 1100 | - | 1399 | 1460 | - | 8 | 1650 | |
| 1660 | 600 | 7.5 | 27270 | 62550 | NNU 41/1060 | 44827/1060 | 1214 | - | 1116 | 1189 | - | 1627 | 1221 | 6 | 5070 | |
| 1120 | 1460 | 335 | 7.5 | 9450 | 28350 | NNU 49/1120 | 44829/1120 | 1220 | - | 1153 | 1210 | - | 1427 | 1227 | 6 | 1450 |
| 1750 | 630 | 7.5 | 30240 | 68850 | NNU 41/1120 | 44827/1120 | 1279 | - | 1176 | 1253 | - | 1717 | 1286 | 6 | 5600 | |
| 1180 | 1540 | 355 | 7.5 | 10710 | 32400 | NNU 49/1180 | 44829/1180 | 1285 | - | 1213 | 1270 | - | 1507 | 1293 | 6 | 1650 |
| 1850 | 670 | 7.5 | 33210 | 76500 | NNU 41/1180 | 44827/1180 | 1350 | - | 1227 | 1320 | - | 1817 | 1358 | 6 | 7200 | |
| 1250 | 1950 | 710 | 7.5 | 37620 | 88200 | NNU 41/1250 | 44827/1250 | 1426 | - | 1297 | 1396 | - | 1917 | 1434 | 6 | 8000 |
| 1320 | 1720 | 400 | 7.5 | 12420 | 38250 | NNU 49/1320 | 44829/1320 | 1440 | - | 1353 | 1420 | - | 1687 | 1448 | 6 | 3100 |
| 1720 | 400 | 7.5 | 13800 | 42500 | NN49/1320 | 42829/1320 | - | 1620 | 1353 | - | 1640 | 1687 | - | 6 | 3060 | |
| 2060 | 750 | 7.5 | 41130 | 95400 | NNU 41/1320 | 44827/1320 | 1507 | - | 1367 | 1474 | - | 2027 | 1515 | 6 | 9400 | |
| 1400 | 2180 | 775 | 9.5 | 44550 | 104400 | NNU 41/1400 | 44827/1400 | 1598 | - | 1470 | 1564 | - | 2140 | 1608 | 8 | 10700 |
| 1500 | 2300 | 800 | 9.5 | 47520 | 118800 | NNU 41/1500 | 44827/1500 | 1709 | - | 1570 | 1674 | - | 12300 | |||
FAQ:
Q : Votre entreprise est-elle une entreprise commerciale ou une usine ?
R: nous sommes une usine, notre société dispose d'une équipe de vente professionnelle pour le commerce extérieur et d'une équipe de support technique expérimentée.
Q : Quelle est la condition de prix ?
A : Usine FOB ShenZhen ou EXW
Q : Quelle est la durée de la garantie ?
R : 12 mois après la date d’expédition.
Q : Comment passer commande ?
R : Parlez au personnel de service, confirmez les détails, puis passez la commande.
