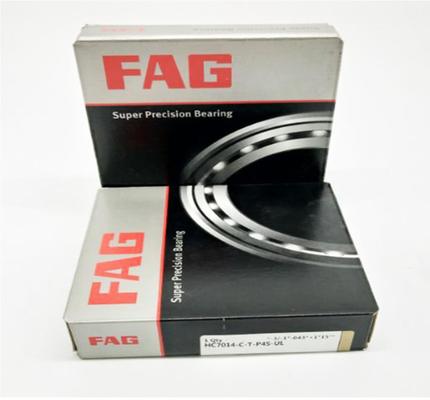

FAG 7014C-T-P4S-UL Separable Angular Contact Ball Bearing
Product Overview
This high-quality angular contact ball bearing is designed for demanding mechanical applications. Engineered to accommodate both radial and axial loads simultaneously, it ensures smooth operation and efficient power transmission. The bearing features a maximum speed of 9200 R/min with grease lubrication and 12000 R/min with oil lubrication, making it suitable for various industrial environments.
Key Features
- Model: 7014C-T-P4S-UL
- Type: Angular Contact Ball Bearing
- Outer Diameter: 110 mm
- Width: 20 mm
- Seals: Open design
- Available in separable and inseparable configurations
- Sealed construction for enhanced protection
Technical Specifications
| Parameter |
Value |
| Rated static load (Cor) |
43.0 KN |
| Rated dynamic load (Cr) |
46.9 KN |
| Clearance options |
C5, C4, C3, C0, C2 |
| Material |
Steel |
| Net weight |
0.66 kg |
| Max speed (grease lubrication) |
9200 R/min |
| Max speed (oil lubrication) |
12000 R/min |
Applications
- Machine tool spindles requiring high-speed precision
- Robotic joints and arms for efficient movement
- Automotive steering systems and transmissions
- Aerospace landing gear and flight control systems
- Industrial gearboxes for power transmission
- Agricultural machinery components
- Construction equipment bearings
- Wind turbine main shaft support
Customization Options
Available brands: SKF, FAG, INA, LYC, HRB
Origin: China
Certifications: ISO9001-2015/SGS
Minimum order quantity: 10 units
Precision grades: P0, P6, P5, P4, P2
Packaging: Standard industrial packaging
Delivery: Based on order quantity
Payment: T/T in advance
Support & Services
Our technical team provides comprehensive support for installation, maintenance, and troubleshooting. We offer maintenance training, performance optimization, and customized solutions to meet specific application requirements.
Packaging & Shipping
Each bearing is carefully packaged in protective boxes to ensure safe delivery. We provide reliable shipping services with prompt order processing.
Frequently Asked Questions
What brands are available for this bearing?
Available brands include SKF, FAG, INA, LYC, and HRB.
What is the model number?
The model number is 7014C-T-P4S-UL.
Where is this bearing manufactured?
This product is manufactured in China.
What certifications does it have?
Certified with ISO9001-2015/SGS standards.
What is the minimum order quantity?
Minimum order quantity is 10 units.
